JH-X360 is a high-performance automated 90-degree pipe bend inner surface hardfacing cladding machine developed by our company. It has the ability to complete the inner surface hardfacing cladding of 90-degree pipe bends in one clamping, and the welding process is continuous without stopping the arc welding, and the advanced automation program control does not require manual intervention.
JH-X360 is a high-performance automated 90-degree pipe bend inner surface hardfacing cladding machine developed by our company. It has the ability to complete the inner surface hardfacing cladding of 90-degree pipe bends in one clamping, and the welding process is continuous without stopping the arc welding, and the advanced automation program control does not require manual intervention.

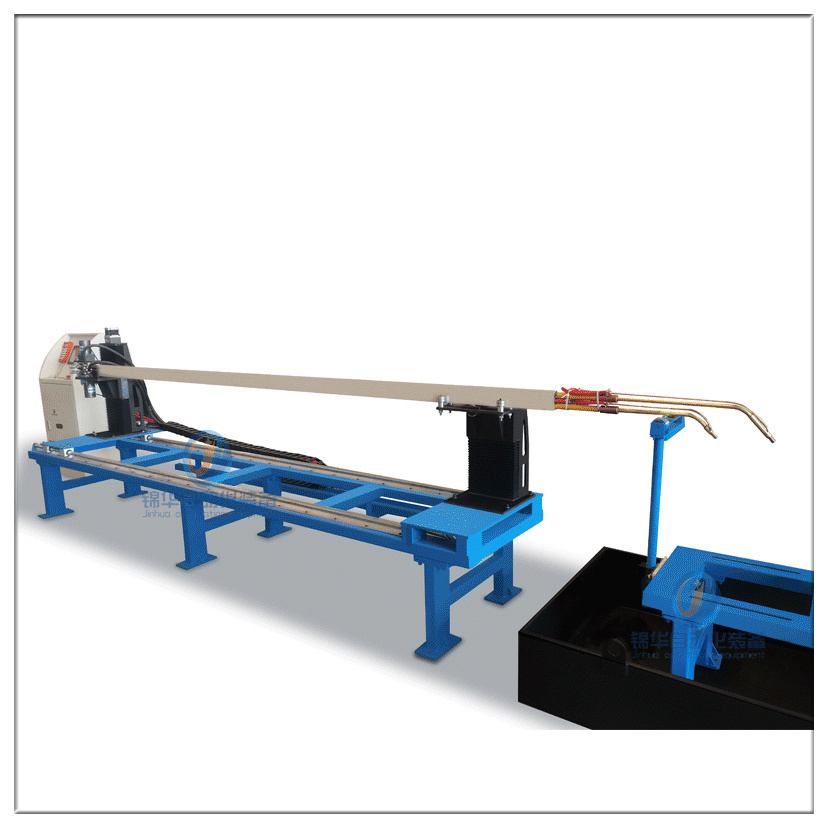

JINHUA set of pipeline inner wall surfacing equipment consists of rotating hardfacing welding torch head, hot rod tig-surfacing torch (three torches), tig welding power supply, hardfacing welding power supply, hardfacing wire feeder, electric carriages, water cooling system, related other mechanical system, welding control system, track automatic tightening system, outer wall cooling system and aerosol recovery system.
| Model | Name | |
| 1 | Elbow Deg | 0-90 degrees |
| 2 | Welding scope | D80-DN1200 |
| 3 | Bending Radius of a bend | MAX |
| 4 | Useful Load | 300Kg |
| 5 | Single layer surfacing thickness | 1.5-3mm |
| 6 | Tire Diameter | 1.6-2.8mm |
